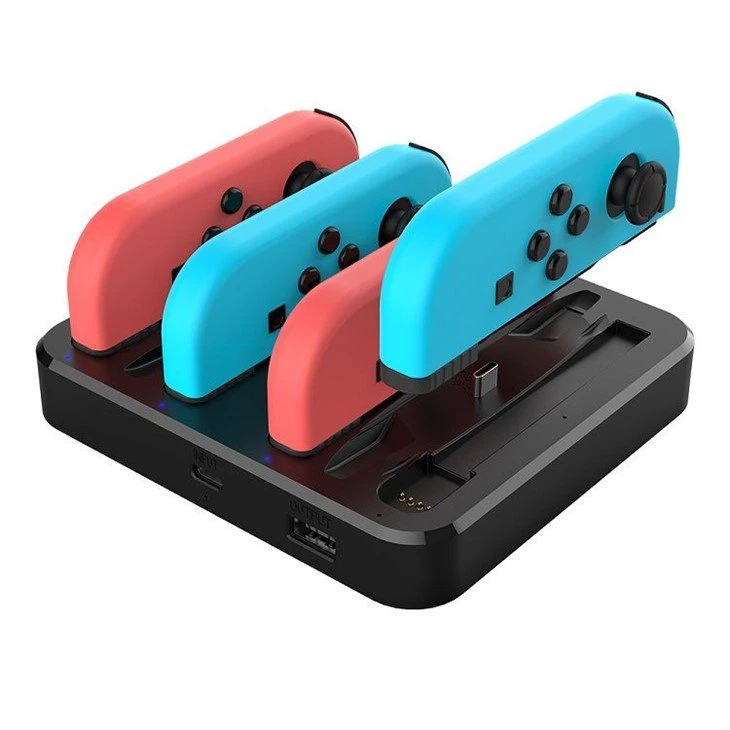

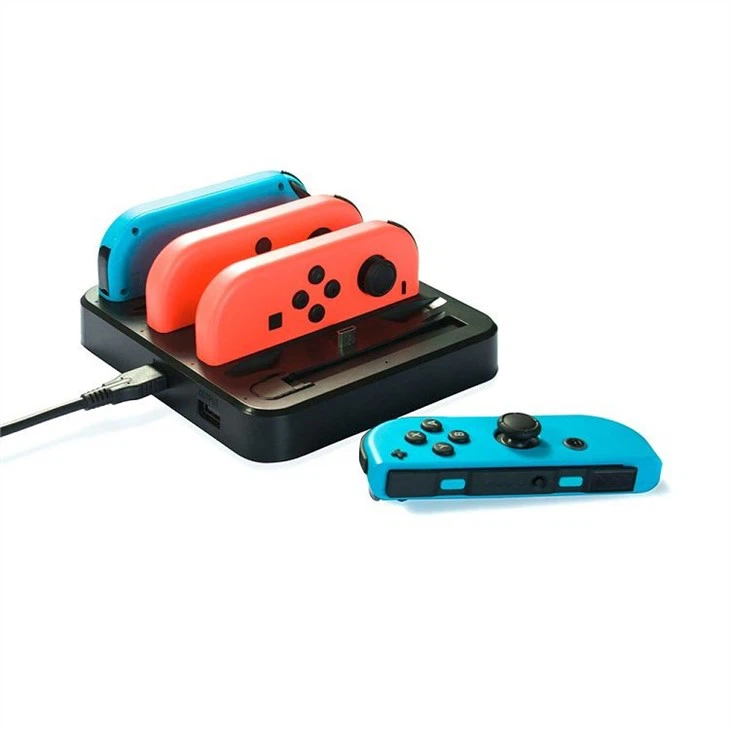

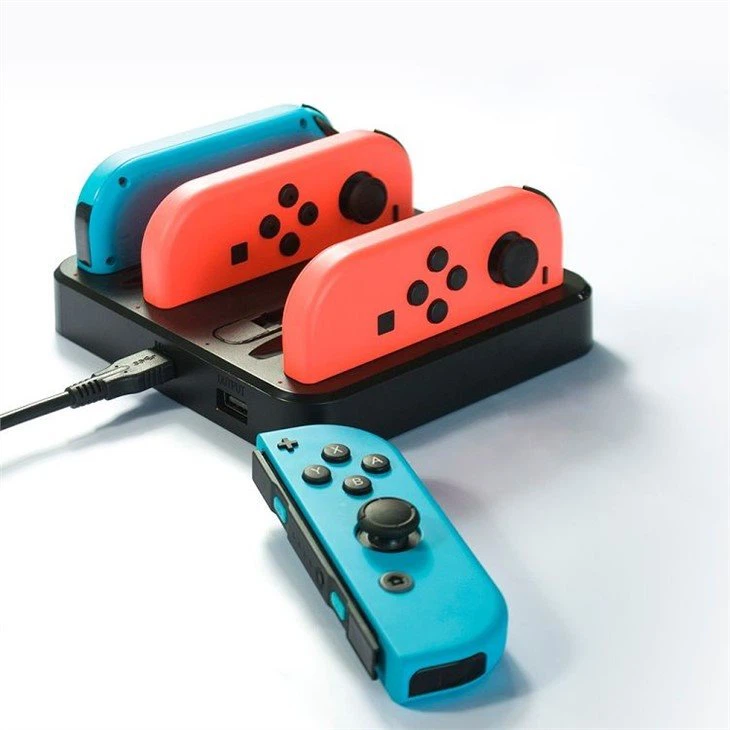

Joy Con and Pro Controller Charging Dock

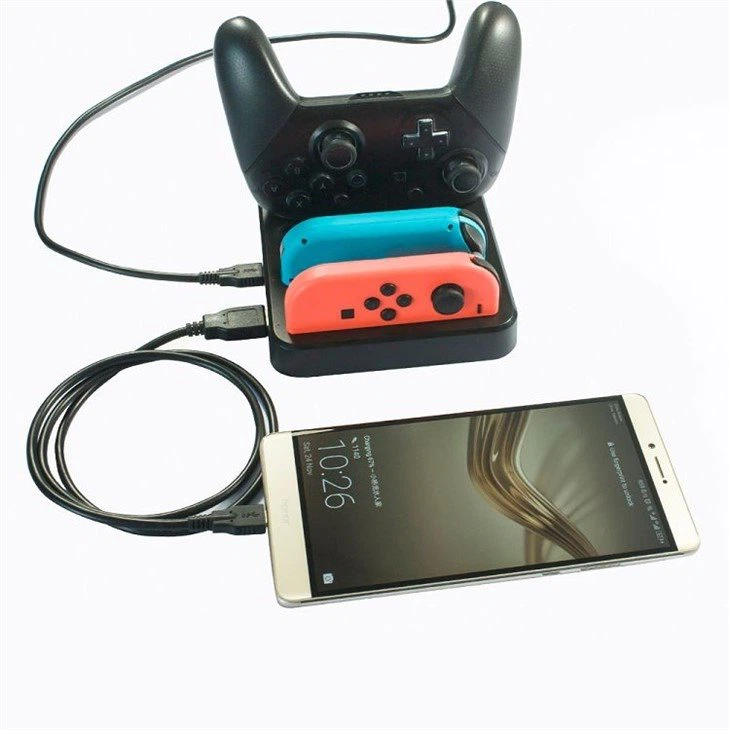

Honcam joy con and pro controller charging dock is designed for Nintendo switch joycon and pro controller. It could Charge the Switch Joy-Con controllers and Pro controllers together.

PRODUCT DETAILS

Honcam joy con and pro controller charging dock used magnetic contract charging, prevent the controllers from the abrasion. Intelligent charging: current limiting, voltage limiting, over-current protection, low voltage protection, high voltage protection, short circuit protection. Type-C port power supply, support original charger, or the third-party power adapter With LED lights to indicate the charging states. Joy-Con controller charging port: When the current exceeds 400mA, the charging stand will enter into over-current protection mode and stop charging, the corresponding LED flash Red. After the controller is removed, the charging function is restored Pro controller charging port: When the current exceeds 450mA, the charging stand will enter into over-current protection mode and stop charging, the corresponding LED flash Red. After the controller is removed, the charging function is restored. When the input voltage is greater than 5.6V or less than 4.4V, the charging stand will enter into over-voltage protection mode and stop charging, all LED flash Red. When the input voltage is normal between 4.4V to 5.6V, the charging function is restored. Joy-Con controllers + USB port output simultaneously charging, power consumption 1.5A Joy-Con controllers + 1 Pro handle + USB port output simultaneously charging, power consumption 1.5A. Pro controllers + USB port output simultaneously charging, power consumption 1.5A.


Features:

1. Charging the Switch Joy-Con controllers and Pro controllers together.

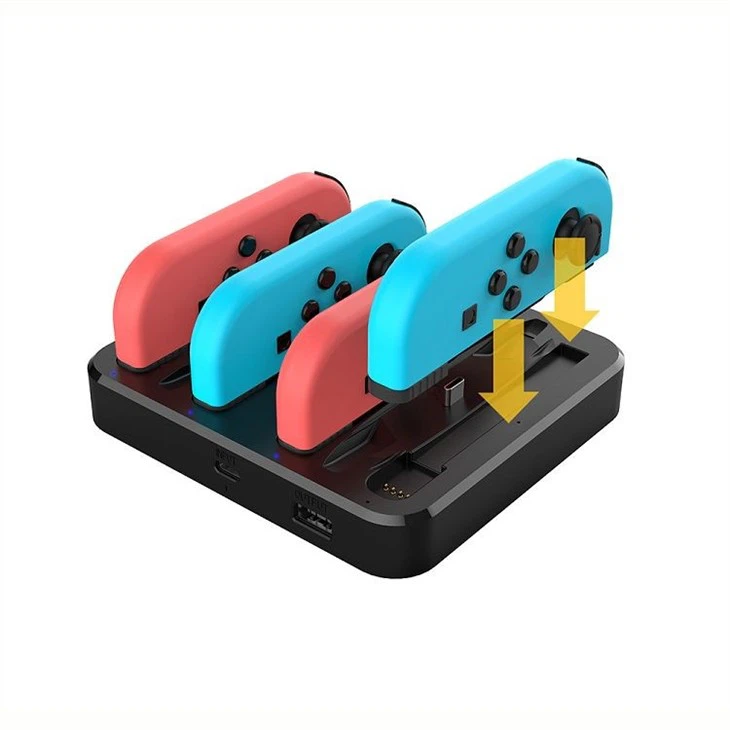

2. Magnetic contract charging, prevent the controllers from the abrasion.

3. Intelligent charging: current limiting, voltage limiting, over-current protection, low voltage protection, high voltage protection, short circuit protection.

4. Type-C interface power supply, support original charger, or the third-party power adapter

5. With LED lights to indicate the charging states.

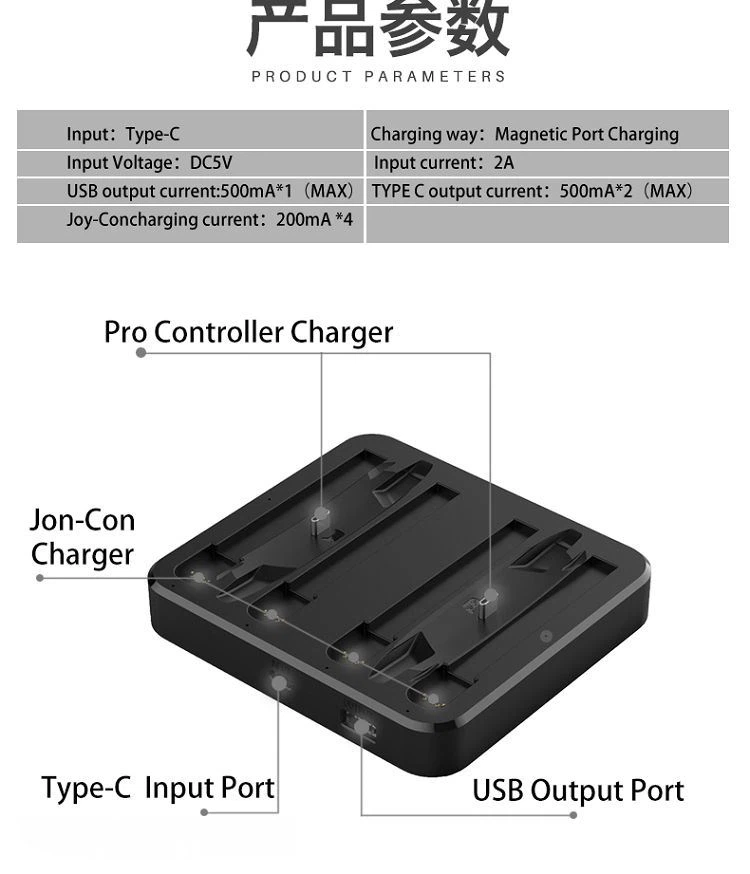

Specifications

Input interface: Type-C

Charging method: magnetic contact charging

Input voltage: DC5V

Input current: 2A

USB output current: 500mA*1 (MAX)

TYPE C output current: 500mA*2 (MAX)

Joy-Con controller charging current: 200mA *4
